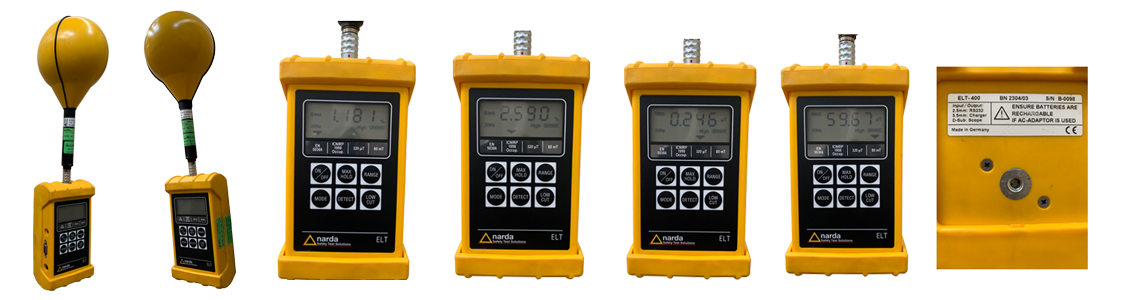

Brand: Narda

Model: ELT-400

Probe: B field 100 cm²

Measuring instrument for assessing the safety of human exposure to radiation in magnetic fields and for acceptance testing of electrically operated equipment according to the CE standard IEC/EN 62233 (formerly EN 50366), Generic Standard IEC 62311 as well as ICNIRP 1998 and ICNIRP 2010. Direct evaluation of field exposure in comparison with major standards and regulations such as EMF Directive 2013/35/EU for workplaces.

Application: Domestic and office equipment, new automobiles with electric drives, and production equipment and electrical installations that generate strong magnetic fields. The instrument can simply and accurately make all B field measurements in the frequency range 1 Hz to 400 kHz. No risk of calculation errors, display directly as a percentage of the limit value taking all frequency components into account automatically. The ELT-400 uses a standard-compliant 100 cm² probe for this.

FEATURES:

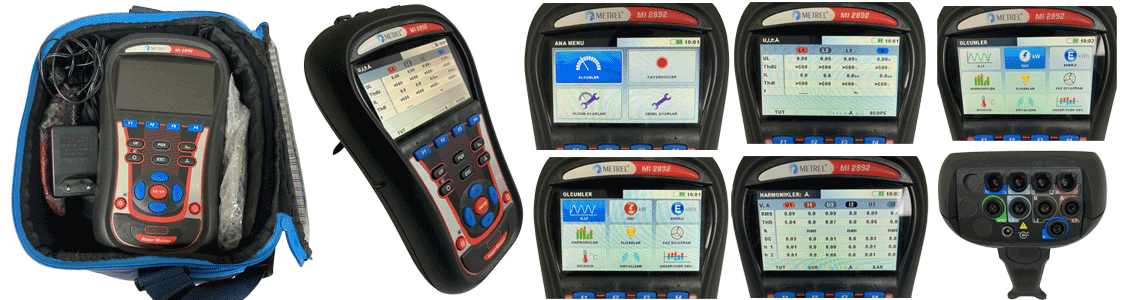

Brand: Metrel

Model: MI 2892

Being sold with probes.

With Metrel MI-2892 you can measure Active power, Reactive power, Visible power, Current, Voltage, Power factor and energy count.

Transient measurements, dip, swell, Interruption and Flicker Measurements.

You can also measure the temperature by attaching a temperature probe to the neutral channel..

Measure PF measurements with inductive or capacitive characteristics.

You can report with Metrel MI-2892 in accordance with EN 50160 Standard.

STANDARTS

Security:

EN 61010-1

EN 61326

Measurements :

IEC/EN 61000-4-30,Class A;

IEC/EN 61557-12;

IEC/EN 61000-4-7, Class I;

IEC/EN 61000-4-15;

EN 50160;

IEEE 1448;

IEEE 1459;
